# Chapter 19 Nullable Value Types

As you know, a variable of a value type can never be null; it always contains the value type’s value itself. In fact, this is why they call these types value types. Unfortunately, there are some scenarios in which this is a problem. For example, when designing a database, it’s possible to define a column’s data type to be a 32-bit integer that would map to the Int32 data type of the Framework Class Library (FCL). But a column in a database can indicate that the value is nullable. That is, it is OK to have no value in the row’s column. Working with database data by using the Microsoft .NET Framework can be quite difficult because in the common language runtime (CLR), there is no way to represent an Int32 value as null.

💡注意：Microsoft ADO.NET 的表适配器 (table adapter) 确实支持可空类型。遗憾的是 System.Data.SqlTypes 命名空间中的类型没有用可空类型替换，部分原因是类型之间没有 “一对一” 的对应关系。例如， SqlDecimal 类型最大允许 38 位数，而普通的 Decimal 类型最大允许 38 位数，而普通的 Decimal 类型最大只允许 29 位数。此外， SqlString 类型支持它自己的本地化和比较选项，而普通的 String 类型并不支持这些。

Here is another example. In Java, the java.util.Date class is a reference type, and therefore, a variable of this type can be set to null. However, in the CLR, a System.DateTime is a value type, and a DateTime variable can never be null. If an application written in Java wants to communicate a date/time to a web service running the CLR, there is a problem if the Java application sends null because the CLR has no way to represent this and operate on it.

To improve this situation, Microsoft added the concept of nullable value types to the CLR. To understand how they work, we first need to look at the System.Nullable structure, which is defined in the FCL.

Here is the logical representation of how the System.Nullable type is defined.

	[Serializable, StructLayout(LayoutKind.Sequential)]
	public struct Nullable<T> where T : struct {
	// These 2 fields represent the state
	private Boolean hasValue = false; // Assume null
	internal T value = default(T); // Assume all bits zero
	public Nullable(T value) {
	this.value = value;
	this.hasValue = true;
	}
	public Boolean HasValue { get { return hasValue; } }
	public T Value {
	get {
	if (!hasValue) {
	throw new InvalidOperationException(
	"Nullable object must have a value.");
	}
	return value;
	}
	}
	public T GetValueOrDefault() { return value; }
	public T GetValueOrDefault(T defaultValue) {
	if (!HasValue) return defaultValue;
	return value;
	}
	public override Boolean Equals(Object other) {
	if (!HasValue) return (other == null);
	if (other == null) return false;
	return value.Equals(other);
	}
	public override int GetHashCode() {
	if (!HasValue) return 0;
	return value.GetHashCode();
	}
	public override string ToString() {
	if (!HasValue) return "";
	return value.ToString();
	}
	public static implicit operator Nullable<T>(T value) {
	return new Nullable<T>(value);
	}
	public static explicit operator T(Nullable<T> value) {
	return value.Value;
	}
	}

As you can see, this class encapsulates the notion of a value type that can also be null. Because Nullable is itself a value type, instances of it are still fairly lightweight. That is, instances can still be on the stack, and an instance is the same size as the original value type plus the size of a Boolean field. Notice that Nullable ’s type parameter, T, is constrained to struct. This was done because reference type variables can already be null.

So now, if you want to use a nullable Int32 in your code, you can write something like this.

	Nullable<Int32> x = 5;
	Nullable<Int32> y = null;
	Console.WriteLine("x: HasValue={0}, Value={1}", x.HasValue, x.Value);
	Console.WriteLine("y: HasValue={0}, Value={1}", y.HasValue, y.GetValueOrDefault());

When I compile and run this code, I get the following output.

x: HasValue=True, Value=5
y: HasValue=False, Value=0

💡小结：为了解决 C# 与数据库数据交互的问题，Microsoft 在 CLR 中引入了可空值类型的概念。该结构能表示可为 null 的值类型。由于 Nullable<T> 本身是值类型，所以它的实例仍然是 “轻量级” 的。也就是说，实例仍然可能在栈上，而且实例的大小和原始值类型基本一样，只是多了一个 Boolean 字段。 Nullable 的类型参数 T 被约束为 struct。这是由于引用类型的变量本来就可以为 null，所以没必要再去照顾它。

# C#’s Support for Nullable Value Types

Notice in the code that C# allows you to use fairly simple syntax to initialize the two Nullable variables, x and y. In fact, the C# team wants to integrate nullable value types into the C# language, making them first-class citizens. To that end, C# offers a cleaner syntax for working with nullable value types. C# allows the code to declare and initialize the x and y variables to be written using question mark notation.

	Int32? x = 5;
	Int32? y = null;

In C#, Int32? is a synonym notation for Nullable. But C# takes this further. C# allows you to perform conversions and casts on nullable instances. And C# also supports applying operators to nullable instances. The following code shows examples of these.

	private static void ConversionsAndCasting() {
	// Implicit conversion from non-nullable Int32 to Nullable<Int32>
	Int32? a = 5;
	// Implicit conversion from 'null' to Nullable<Int32>
	Int32? b = null; // Same as "Int32? b = new Int32?();" which sets HasValue to false
	// Explicit conversion from Nullable<Int32> to non-nullable Int32
	Int32 c = (Int32) a;
	// Casting between nullable primitive types
	Double? d = 5; // Int32->Double? (d is 5.0 as a double)
	Double? e = b; // Int32?->Double? (e is null)
	}

C# also allows you to apply operators to nullable instances. The following code shows examples of this.

	private static void Operators() {
	Int32? a = 5;
	Int32? b = null;

	// Unary operators (+ ++ - -- ! ~)
	a++; // a = 6
	b = -b; // b = null
	// Binary operators (+ - * / % & \| ^ << >>)
	a = a + 3; // a = 9
	b = b * 3; // b = null;
	// Equality operators (== !=)
	if (a == null) { /* no / } else { / yes */ }
	if (b == null) { /* yes / } else { / no */ }
	if (a != b) { /* yes / } else { / no */ }
	// Comparison operators (<> <= >=)
	if (a < b) { /* no / } else { / yes */ }
	}

Here is how C# interprets the operators:
Unary operators (+, ++, -, --, ! , ~) If the operand is null, the result is null.

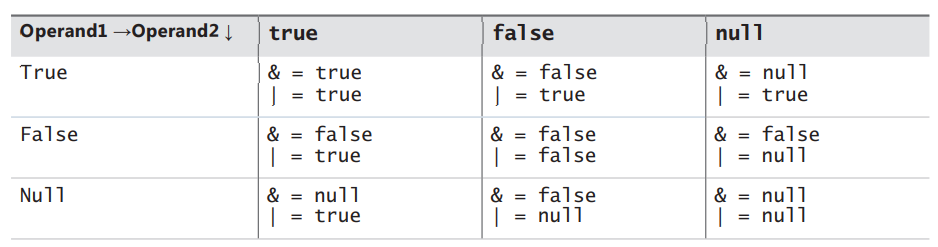

Binary operators (+, -, *, /, %, &, |, ^, <<, >>) If either operand is null, the result is null. However, an exception is made when the & and | operators are operating on Boolean? operands, so that the behavior of these two operators gives the same behavior as demonstrated by SQL’s three-valued logic. For these two operators, if neither operand is null, the operator performs as expected, and if both operands are null, the result is null. The special behavior comes into play when just one of the operands is null. The following table lists the results produced by these two operators for all combinations of true, false, and null.
Equality operators (==, !=) If both operands are null, they are equal. If one operand is null, they are not equal. If neither operand is null, compare the values to determine if they are equal.
Relational operators (<, >, <=, >=) If either operand is null, the result is false. If neither operand is null, compare the values.

You should be aware that manipulating nullable instances does generate a lot of code. For example, see the following method.

	private static Int32? NullableCodeSize(Int32? a, Int32? b) {
	return a + b;
	}

When I compile this method, there is quite a bit of resulting Intermediate Language (IL) code, which also makes performing operations on nullable types slower than performing the same operation on non-nullable types. Here is the C# equivalent of the compiler-produced IL code.

	private static Nullable<Int32> NullableCodeSize(Nullable<Int32> a, Nullable<Int32> b) {
	Nullable<Int32> nullable1 = a;
	Nullable<Int32> nullable2 = b;
	if (!(nullable1.HasValue & nullable2.HasValue)) {
	return new Nullable<Int32>();
	}
	return new Nullable<Int32>(nullable1.GetValueOrDefault() + nullable2.GetValueOrDefault());
	}

Finally, let me point out that you can define your own value types that overload the various operators previously mentioned. I discuss how to do this in the “Operator Overload Methods” section in Chapter 8, “Methods.” If you then use a nullable instance of your own value type, the compiler does the right thing and invokes your overloaded operator. For example, suppose that you have a Point value type that defines overloads for the == and != operators as follows.

	using System;
	internal struct Point {
	private Int32 m_x, m_y;
	public Point(Int32 x, Int32 y) { m_x = x; m_y = y; }
	public static Boolean operator==(Point p1, Point p2) {
	return (p1.m_x == p2.m_x) && (p1.m_y == p2.m_y);
	}
	public static Boolean operator!=(Point p1, Point p2) {
	return !(p1 == p2);
	}
	}

At this point, you can use nullable instances of the Point type and the compiler will invoke your overloaded operators.

	internal static class Program {
	public static void Main() {
	Point? p1 = new Point(1, 1);
	Point? p2 = new Point(2, 2);
	Console.WriteLine("Are points equal? " + (p1 == p2).ToString());
	Console.WriteLine("Are points not equal? " + (p1 != p2).ToString());
	}
	}

When I build and run the preceding code, I get the following output.

Are points equal? False
Are points not equal? True

💡小结：事实上，C# 开发团队的目的是将可空值类型集成到 C# 语言中，使之成为 “一等公民”。为此，C# 提供了更清晰的语法来处理可空值类型。在 C# 中， Int32? 等价于 Nullable<Int32> 。但 C# 在此基础上更进一步，允许开发人员在可空实例上执行转换和转型。并且 C# 有自己解析操作符的一套方式。可以定义自己的值类型来重载上述各种操作符。使用自己的值类型的可空实例，编译器能正确识别它并调用你重载的操作符方法。

# C#’s Null-Coalescing Operator

C# has an operator called the null-coalescing operator (??), which takes two operands. If the operand on the left is not null, the operand’s value is returned. If the operand on the left is null, the value of the right operand is returned. The null-coalescing operator offers a very convenient way to set a variable’s default value.

A cool feature of the null-coalescing operator is that it can be used with reference types as well as nullable value types. Here is some code that demonstrates the use of the null-coalescing operator.

	private static void NullCoalescingOperator() {
	Int32? b = null;
	// The following line is equivalent to:
	// x = (b.HasValue) ? b.Value : 123
	Int32 x = b ?? 123;
	Console.WriteLine(x); // "123"
	// The following line is equivalent to:
	// String temp = GetFilename();
	// filename = (temp != null) ? temp : "Untitled";
	String filename = GetFilename() ?? "Untitled";
	}

Some people argue that the null-coalescing operator is simply syntactic sugar for the ?: operator, and that the C# compiler team should not have added this operator to the language. However, the null-coalescing operator offers two significant syntactic improvements. The first is that the ?? operator works better with expressions.

Func<String> f = () => SomeMethod() ?? "Untitled";

This code is much easier to read and understand than the following line, which requires variable assignments and multiple statements.

	Func<String> f = () => { var temp = SomeMethod();
	return temp != null ? temp : "Untitled";};

The second improvement is that ?? works better in composition scenarios. For example, the following single line:

String s = SomeMethod1() ?? SomeMethod2() ?? "Untitled";

is far easier to read and understand than this chunk of code.

	String s;
	var sm1 = SomeMethod1();
	if (sm1 != null) s = sm1;
	else {
	var sm2 = SomeMethod2();
	if (sm2 != null) s = sm2;
	else s = "Untitled";
	}

💡小结：C# 提供了一个 “空结合操作符”（null-coalescing operator），即？？操作符，它要获取两个操作数。假如左边的操作数不为 null，就返回这个操作数的值。如果左边的操作数为 null，就返回右边的操作数的值。空结合操作符的一个好处在于，它既能用于引用类型，也能用于可空值类型。

# The CLR Has Special Support for Nullable Value Types

The CLR has built-in support for nullable value types. This special support is provided for boxing, unboxing, calling GetType , calling interface methods, and it is given to nullable types to make them fit more seamlessly into the CLR. This also makes them behave more naturally and as most developers would expect. Let’s take a closer look at the CLR’s special support for nullable types.

# Boxing Nullable Value Types

Imagine a Nullable variable that is logically set to null. If this variable is passed to a method prototyped as expecting an Object, the variable must be boxed, and a reference to the boxed Nullable is passed to the method. This is not ideal because the method is now being passed a non-null value even though the Nullable variable logically contained the value of null. To fix this, the CLR executes some special code when boxing a nullable variable to keep up the illusion that nullable types are first-class citizens in the environment.

Specifically, when the CLR is boxing a Nullable instance, it checks to see if it is null, and if so, the CLR doesn’t actually box anything, and null is returned. If the nullable instance is not null, the CLR takes the value out of the nullable instance and boxes it. In other words, a Nullable with a value of 5 is boxed into a boxed-Int32 with a value of 5. Here is some code that demonstrates this behavior.

	// Boxing Nullable<T> is null or boxed T
	Int32? n = null;
	Object o = n; // o is null
	Console.WriteLine("o is null={0}", o == null); // "True"
	n = 5;
	o = n; // o refers to a boxed Int32
	Console.WriteLine("o's type={0}", o.GetType()); // "System.Int32"

# Unboxing Nullable Value Types

The CLR allows a boxed value type T to be unboxed into a T or a Nullable. If the reference to the boxed value type is null, and you are unboxing it to a Nullable, the CLR sets Nullable ’s value to null. Here is some code to demonstrate this behavior.

	// Create a boxed Int32
	Object o = 5;
	// Unbox it into a Nullable<Int32> and into an Int32
	Int32? a = (Int32?) o; // a = 5
	Int32 b = (Int32) o; // b = 5
	// Create a reference initialized to null
	o = null;
	// "Unbox" it into a Nullable<Int32> and into an Int32
	a = (Int32?) o; // a = null
	b = (Int32) o; // NullReferenceException

# Calling GetType via a Nullable Value Type

When calling GetType on a Nullable object, the CLR actually lies and returns the type T instead of the type Nullable. Here is some code that demonstrates this behavior.

	Int32? x = 5;
	// The following line displays "System.Int32"; not "System.Nullable<Int32>"
	Console.WriteLine(x.GetType());

# Calling Interface Methods via a Nullable Value Type

In the following code, I’m casting n, a Nullable, to IComparable , an interface type. However, the Nullable type does not implement the IComparable interface as Int32 does. The C# compiler allows this code to compile anyway, and the CLR’s verifier considers this code verifiable to allow you a more convenient syntax.

	Int32? n = 5;
	Int32 result = ((IComparable) n).CompareTo(5); // Compiles & runs OK
	Console.WriteLine(result); // 0

If the CLR didn’t provide this special support, it would be more cumbersome for you to write code to call an interface method on a nullable value type. You’d have to cast the unboxed value type first before casting to the interface to make the call.

Int32 result = ((IComparable) (Int32) n).CompareTo(5); // Cumbersome

💡小结：CLR 内建对可空值类型的支持。这个特殊的支持是针对装箱、拆箱、调用 GetType 和调用接口方法提供的，它使可空类型能无缝地集成到 CLR 中，而且它使用具有更自然的行为，更符合大多数开发人员的预期。当 CLR 对 Nullable<T> 实例进行装箱时，会检查它是否为 null。如果是，CLR 不装箱任何东西，直接返回 null。如果可空实例不为 null，CLR 从可空实例中取出值并进行装箱。CLR 允许将已装箱的值类型 T 拆箱为一个 T 或者 Nullable<T> 。如果对已装箱类型的引用是 null ，而且要把它拆箱为一个 Nullable<T> ，那么 CLR 会将 Nullable<T> 的值设为 null 。在 Nullable<T> 对象上调用 GetType ，CLR 实际会 “撒谎” 说类型是 T ，而不是 Nullable<T> 。通过可空值类型我们还能调用对应值类型的接口方法。
